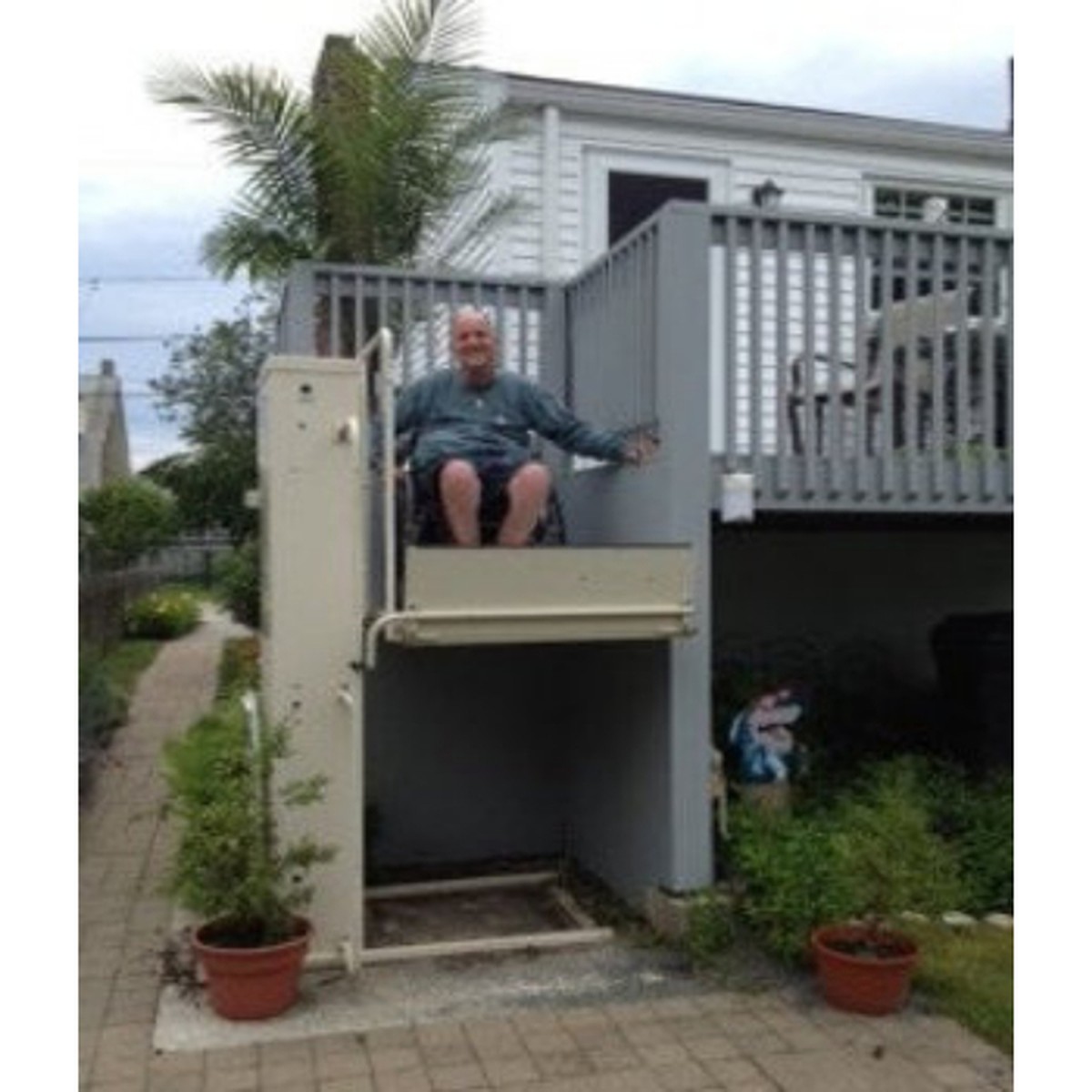

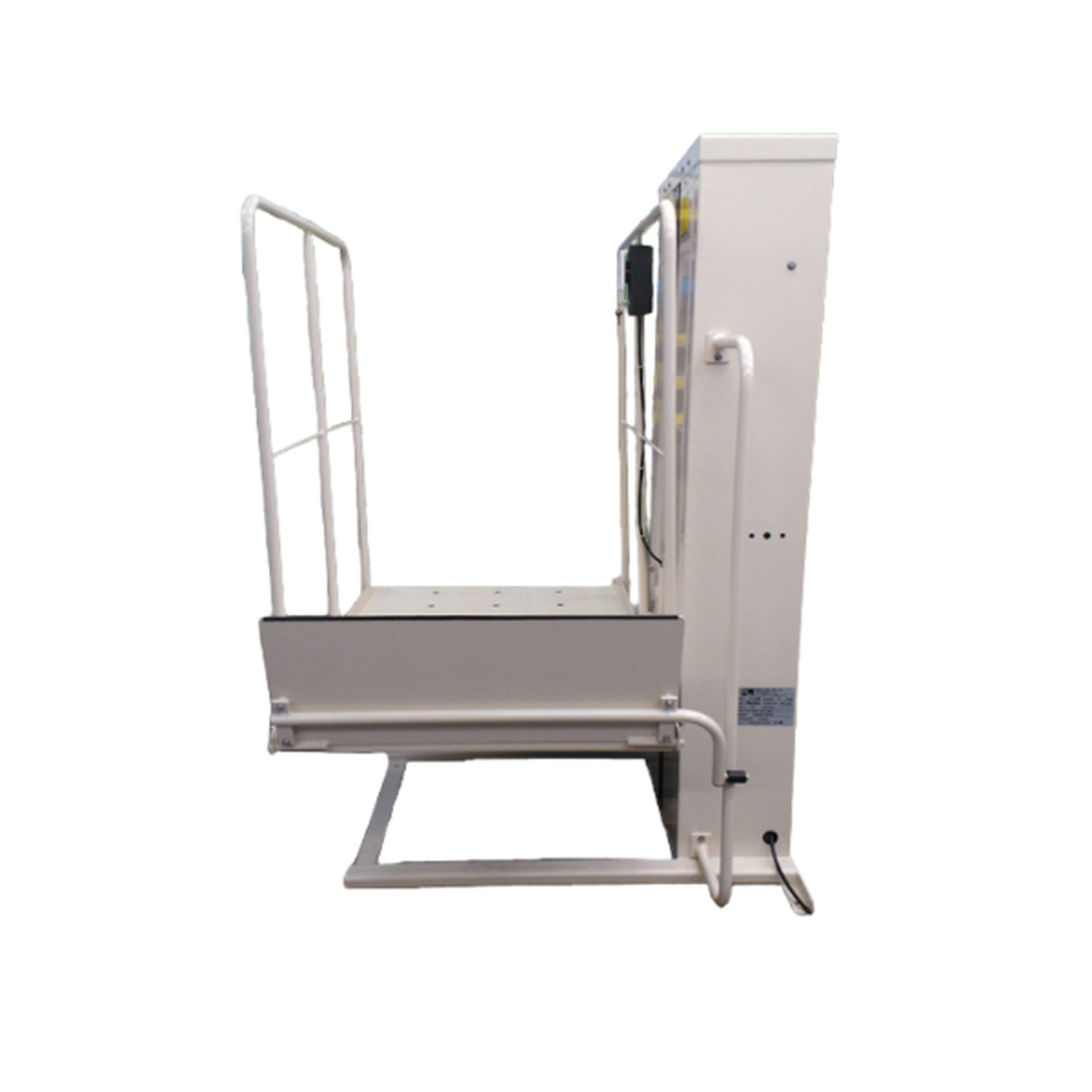

Mac’s Vertical Home Lift Technical Specifications
MODEL: PL-‐50 and PL-‐72
SERIES: 750R
RATED LOAD: 750 lbs maximum
NUMBER OF PASSENGERS: 1 passenger with mobility equipment
DRIVE: AC Powered lift: 1/2 hp instant reverse motor, 115 VAC, 5.9 amp
DC Powered lift: 1/2 hp motor, 12 VDC
INTERMEDIATE REDUCTION: V belt and pulley
FINAL DRIVE: #50 drive chain
MOTOR CONTROLLER: AC Powered lift: 24 VAC, 2 contactors; 1 up and 1 down
DC Powered lift: 12 VDC, 2 contactors; 1 up and 1 down
STANDARD CONTROL: Constant pressure paddle control with key switch
SPEED: 10 feet per minute
LIFTING HEIGHT: Model PL-‐50 has a 51” maximum lifting height
Model PL-‐72 has a 72” maximum lifting height

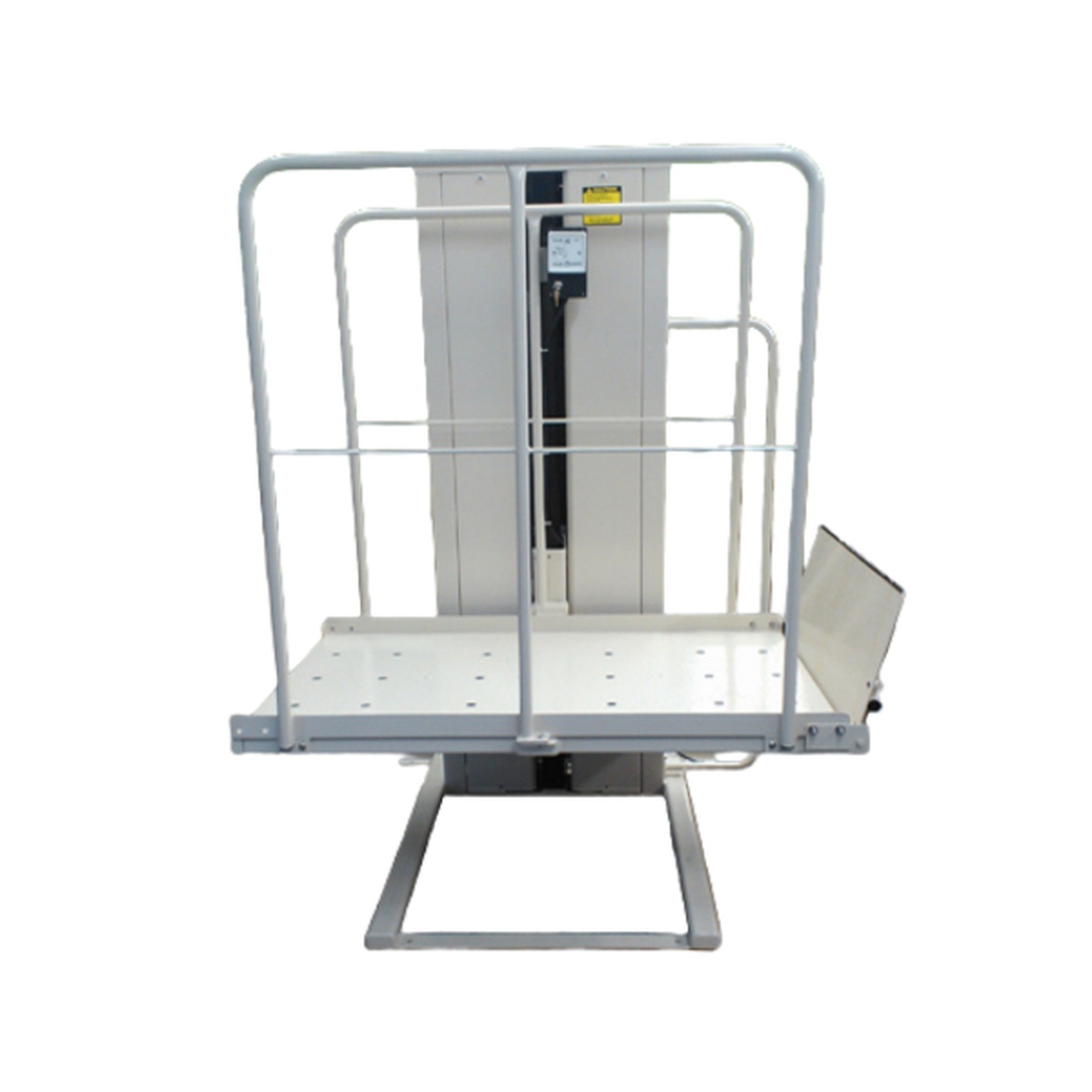

PLATFORM SIZE: 32” x 48”, straight thru platform (standard)
36” x 54”, 90 degree exit platform; LG 54 straight thru platform
36” x 60”, LG 90 degree exit platform, LG 60 straight thru platform
MAIN FRAME CONSTRUCTION: Formed steel welded construction
CARRIAGE CONSTRUCTION: Steel tubing and formed channel welded construction
PLATFORM CONSTRUCTION: 1” steel tubing

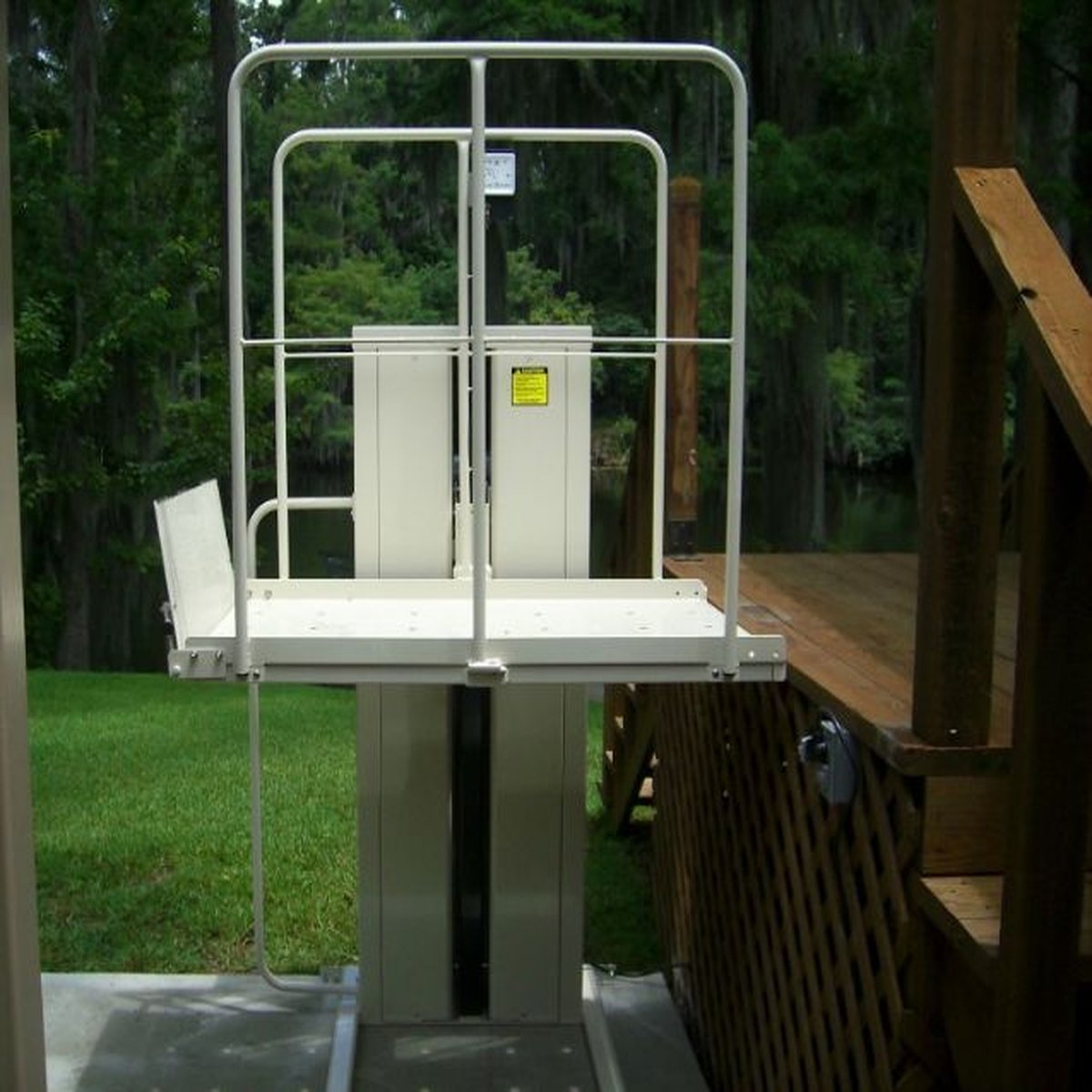

AUTOMATIC LOWER RAMP: 12” automatic lowering ramp
MANUAL LOWERING DEVICE: Standard. Manual hand crank to raise and lower lift
FINISH: Exterior grade powder coat paint, sandblast and primer
LIMIT SWITCHES: Adjustable upper final limit switch
WEIGHT OF UNIT: Model PL-‐50R: 425 lbs
Model PL-‐72R: 475 lbs
