Description

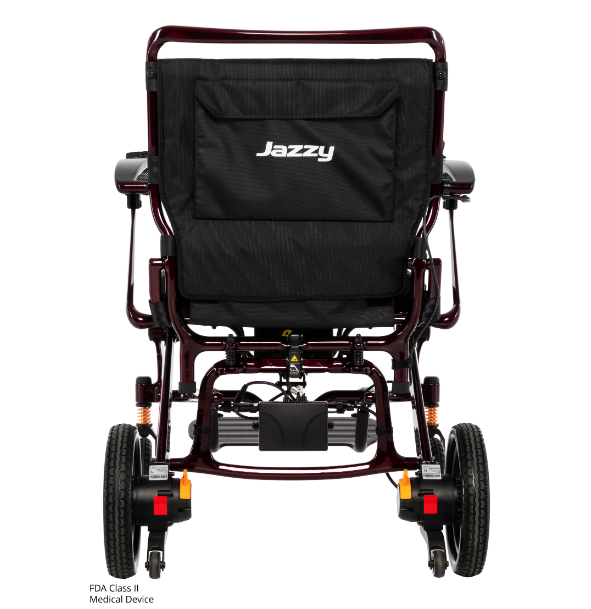

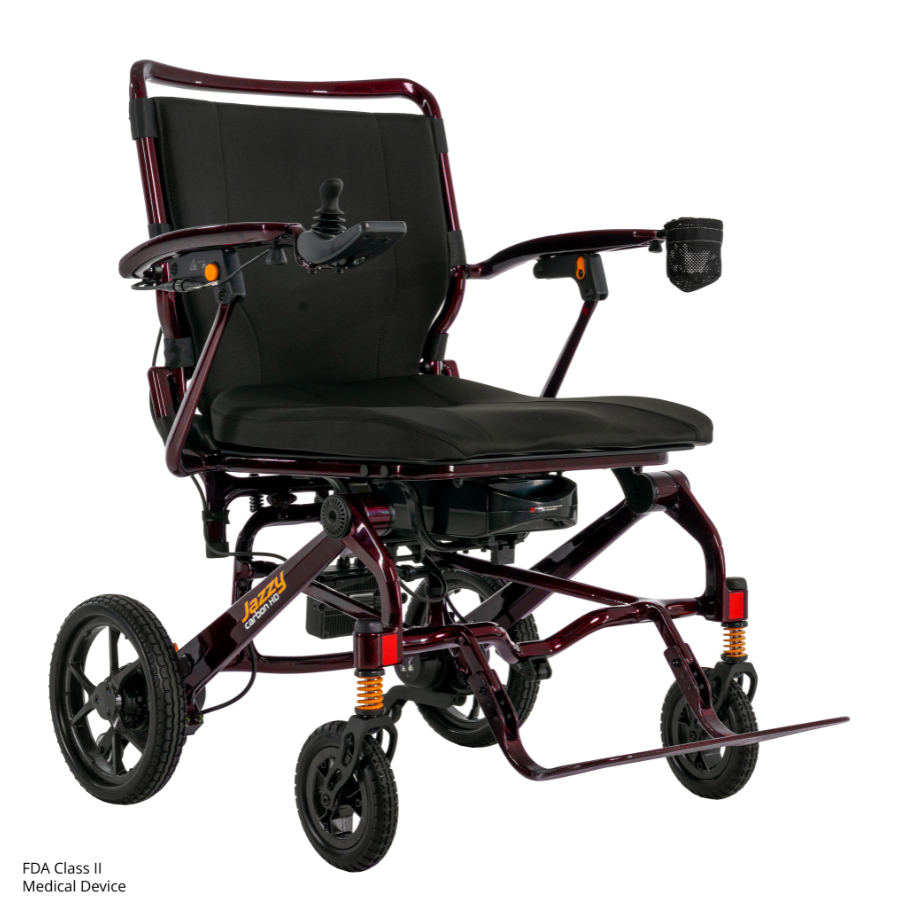

Jazzy® Carbon HD
The wait is over for a truly travel‑friendly, heavy‑duty power wheelchair. The Jazzy® Carbon HD combines portability with strength, featuring a durable carbon fiber frame, an impressive 400 lb. weight capacity, and a lightweight design that weighs just 32.2 lbs. without the battery. Built for life on the go, it delivers greater freedom and independence wherever your travels take you.
Easy to Fold, Easy to lift, Easy to Transport
Features:
- Unit weighs 32.2 lbs. without the battery
- 400-lb. weight capacity
- Durable carbon fiber frame
- Front and rear suspension
- Top speed of up to 3.7 mph
- Battery range of up to 12.4 miles
- 20″ x 20″ seat

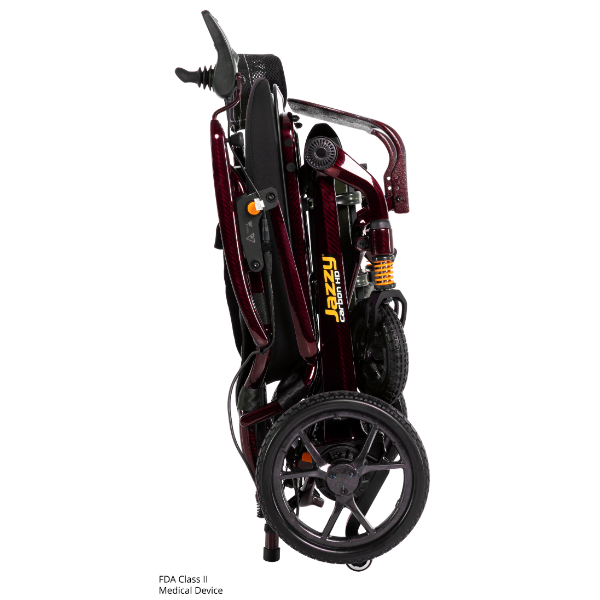

- Easy fold design that locks into folded position
- Folded dimensions: 31.3” L x 26.4” W x 13 H
- Flip up lightweight carbon fiber arms
- Padded seat back with removable cushion
- Extra-wide adjustable foot platform 17.25” W x 5.9” D
- 20 Ah lithium battery (standard)
- Storage pocket on back of seat

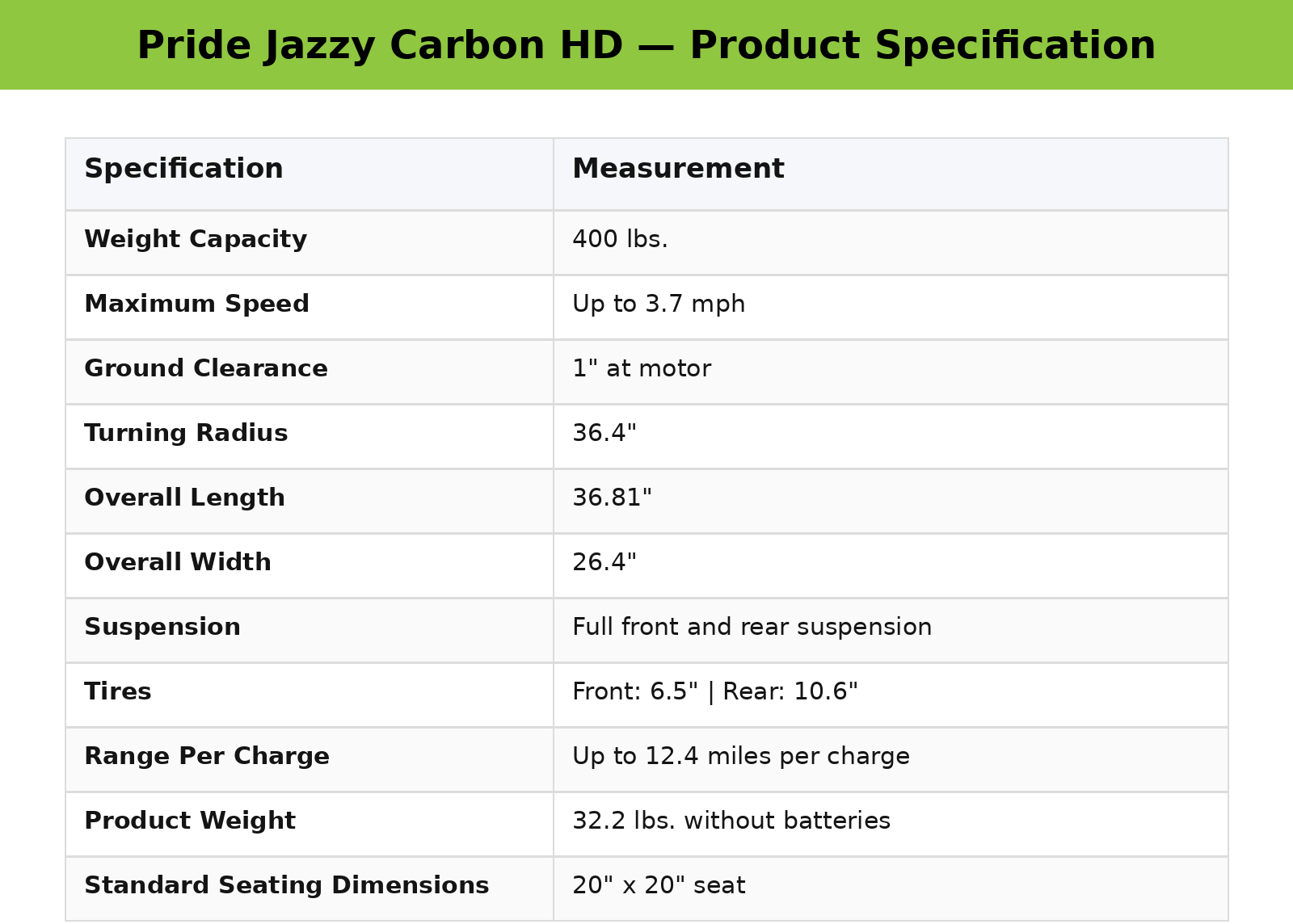

Product Specs:
| Weight Capacity | 400 lbs |
|---|---|
| Total Weight | 39.7 lbs |
| Heaviest Piece When Disassembled | 32.2 lbs |
| Maximum Battery Range | 12.4 miles |
| Top Speed | 3.7 mph |
| Turning Radius | 36.4 inches |
| Ground Clearance | 1 inches |
| Length | 36.81 inches |
| Width | 26.4 inches |
| Height (Ground to Top of Back of Seat) | 37.5 inches |
| Ground to Top of Seat | 21 inches |
| Ground to Top of Footrest | 6.5 inches |
| Seat Width | 20×20 inches |
| Front Wheels | 6.5 inch (Solid) |
| Rear Wheels | 10.6 inch (Solid) |
