Description
Highlights

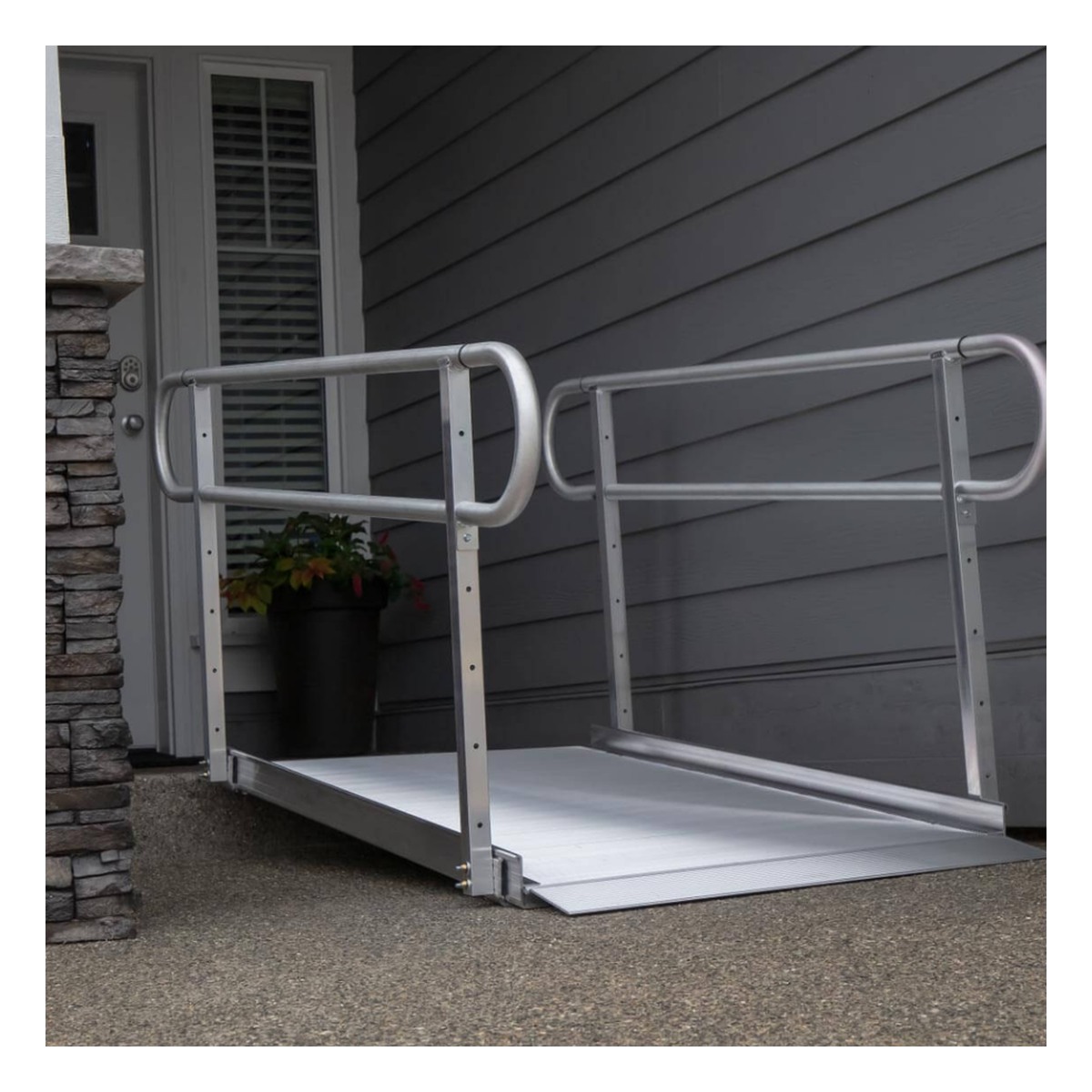

- Available with optional handrails in either an elegant architectural finish or durable black powder-coated finish
- Choose from a slip-resistant extruded deck surface or high-traction Safeguard Hi-Traction® gritted decking
- Engineered to provide superior stability and reliable traction in a variety of weather conditions
- Supports up to 1,000 lbs. for safe, dependable accessibility
- Constructed from lightweight, heavy-duty aluminum for long-lasting durability
- Rust-resistant and built to withstand the elements without rotting, warping, or deterioration
- Formed top transition and adjustable bottom plate create smooth, secure entry and exit points

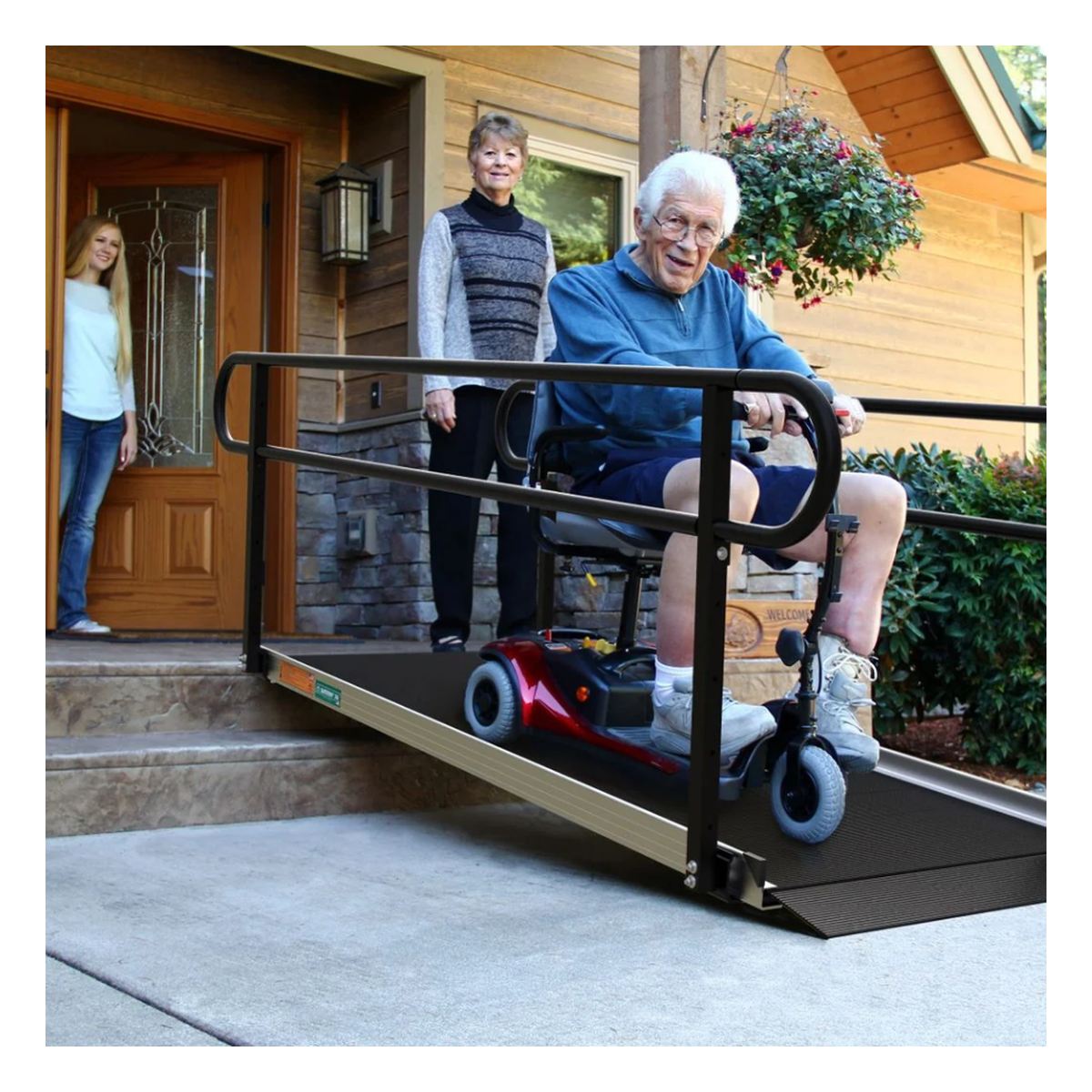

- Integrated side curbs help keep wheelchairs, scooters, and walkers safely on the ramp surface
- Ideal for temporary or semi-permanent residential accessibility solutions
- Proudly Made in the USA with quality craftsmanship and materials
Product Specs:

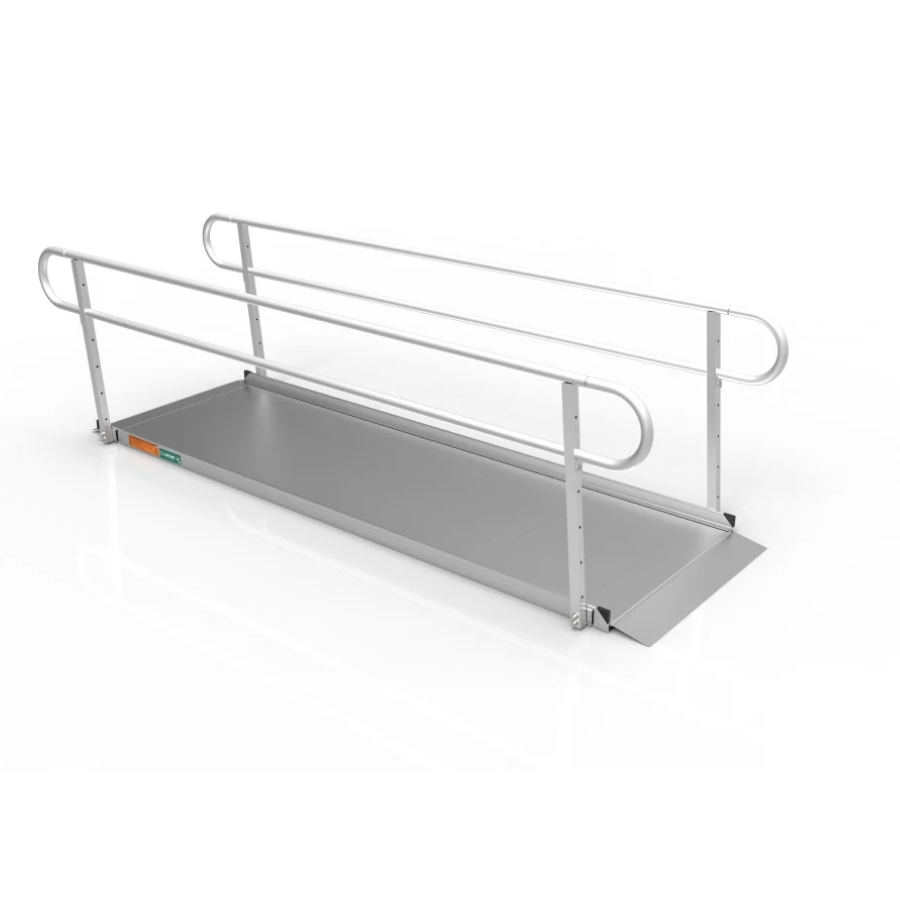

GATEWAY® 3G Solid Surface Portable Ramp
| Size | 3 Ft | 4 Ft | 5 Ft | 6 Ft | 7 Ft | 8 Ft | 9 Ft | 10 Ft |
|---|---|---|---|---|---|---|---|---|
| Accommodates Rise Up To | 4″ | 6″ | 7″ | 9″ | 10″ | 12″ | 13″ | 15″ |
| Weight | 24 / 44 / 46 lbs. | 30 / 52 / 58 lbs. | 36 / 60 / 68 lbs. | 42 / 68 / 78 lbs. | 50 / 74 / 90 lbs. | 54 / 82 / 98 lbs. | 68 / 96 / 118 lbs. | 72 / 106 / 128 lbs. |
| Usable Size | 3′ × 36″ | 4′ × 36″ | 5′ × 36″ | 6′ × 36″ | 7′ × 36″ | 8′ × 36″ | 9′ × 36″ | 10′ × 36″ |
| Overall Width | 41.75″ | |||||||
| Material | Aluminum | |||||||
| Surface | Slip-Resistant | |||||||
| Weight Capacity | 1,000 lbs. | |||||||
| For Wheelchairs & Scooters | Yes | |||||||
| Residential Use | Yes | |||||||
| Warranty | Lifetime | |||||||
Warranty:
Lifetime Warranty: Ramp Structure
See owner’s manual for complete warranty details and exclusions.
